ZH Predator Series

6.5 to 10 TR (R-410a)

Air Cooled Packaged Air Conditioners 50HzDEH

Models ZH 078, 090, 102 & 120 (6.5, 7.5, 8.5 & 10 Nominal Tons)

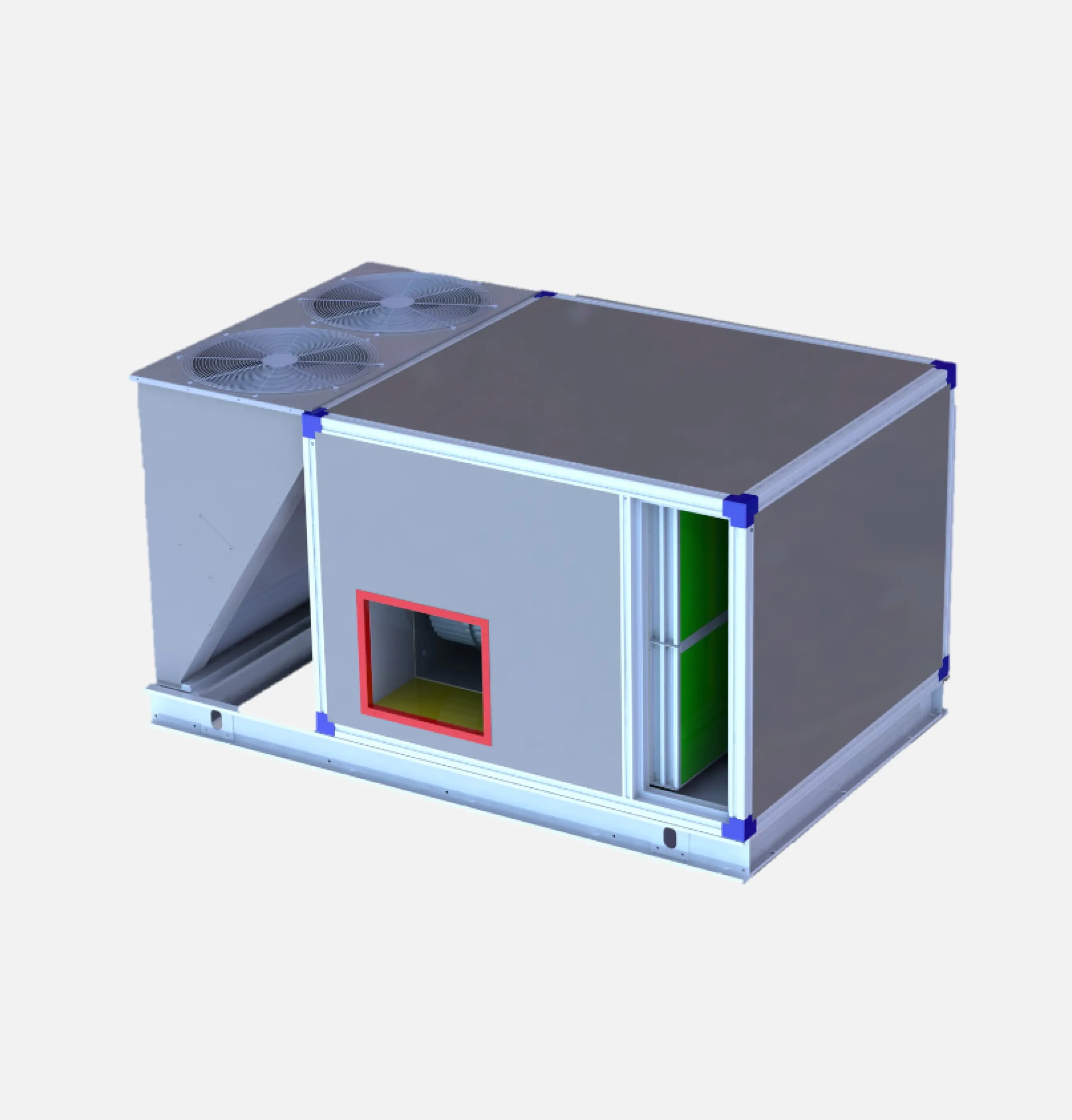

YORK PREDATOR Units are high-efficiency rooftop air conditioners designed for commercial use. They feature dual refrigerant circuits for efficient part load operation and can be easily installed on rooftops or frames. With various factory-mounted options and field accessories, they suit a wide range of applications and operate effectively within abroad temperature range. YORK PREDATOR air conditioners are AHRI 340/360 rated.

All Standard Units Include

For standard construction with Painted GI outer skin in attractive champagne color that meet ASTM B 117, 750 hour salt spray standard. Optional powder paint finish that meets ASTM B 117, 750 hour salt spray for single skin ZH078.
Two-stage cooling provided by dual independent refrigeration circuits with expansion valves, filter drier, high and low pressure switches and freezestats.
High efficiency hermetic scroll compressors. Side air discharge configuration.
Belt drive blower motor with variable pitch pulley.
Totally Enclosed Fan Cooled (TEFC) IP55 Evaporator fan motors with Class F Insulation

Totally Enclosed Air over (TEAO) IP55 Condenser fan motors with Class F Insulation
Microprocessor based Simplicity TM control board. Fresh air intake panel.
Copper tubes / Aluminum Fins coils Evaporator Coils.
Micro-Channel Aluminum Tubes / Aluminum Fins Condenser Coils. 2 inch disposable filter with easy access.
Rigging holes in base rails for overhead lifting. Single point power connection.
Complete factory package-tested, charged and wired.
1 year limited warranty on the complete unit and additional 4 years warranty on compressors.

Options Available

Heresite Coated Evaporator Coils (factory installed): Coating is applied by spray for maximum corrosion protection.
Techno coated Condenser Coils (Factory Installed)
Copper Tube and Copper Fin Evaporator Coils (factory installed).
Filter Options: Standard units are shipped, installed with 2” throw away filters. 2” washable aluminum filters and 4” pleated filter are offered as a factory installed option.
Bag Filters (factory installed): Units can be supplied with bag filters ,efficiency 65%, 85% & 95%
High And Low Speed Drive (factory installed): Includes a belt and blower pulley to upgrade or down- grade the blower performance.
Fresh Air Dampers: Manual or motorized
Electric Heaters: Electric heat models are wired for a single power source and feature nickel
chromium elements, providing uniform air distribution. Elements are protected by a high- temperature thermal cut-out (HTIC).

Phase Monitors (factory installed): Design to prevent unit damage, the phase monitor will shut the unit down in an out of phase condition.
Main Disconnect Switch (factory installed): Suitably sized in accordance with the applicable electrical codes.
Thermostat (field installed): For 2 stage cooling only and a 2-stage heating.
BMS Controls: York’s Predator series units offer factory mounted BMS controls-consult your local sales office for details.
Smoke detectors for both supply air and return air (factory-installed): These detectors halt unit operation by interrupting the process.
Ultra violet Lamps: Factory Installed
Economizer (factory installed): Predator units offer an optional factory installed economizer with low leak dampers, single enthalpy and double enthalpy controls.
