Airside Solutions

Fan Coil Units

YORK® fan and blower coil units (FCUs) offer reliable performance, versatile design options, and ease of serviceability. With a comprehensive range of standard and optional features, they can be seamlessly integrated into various heating, ventilation, and air conditioning system designs.

Fan

Fan Coil Units

Contact Us
YGFC

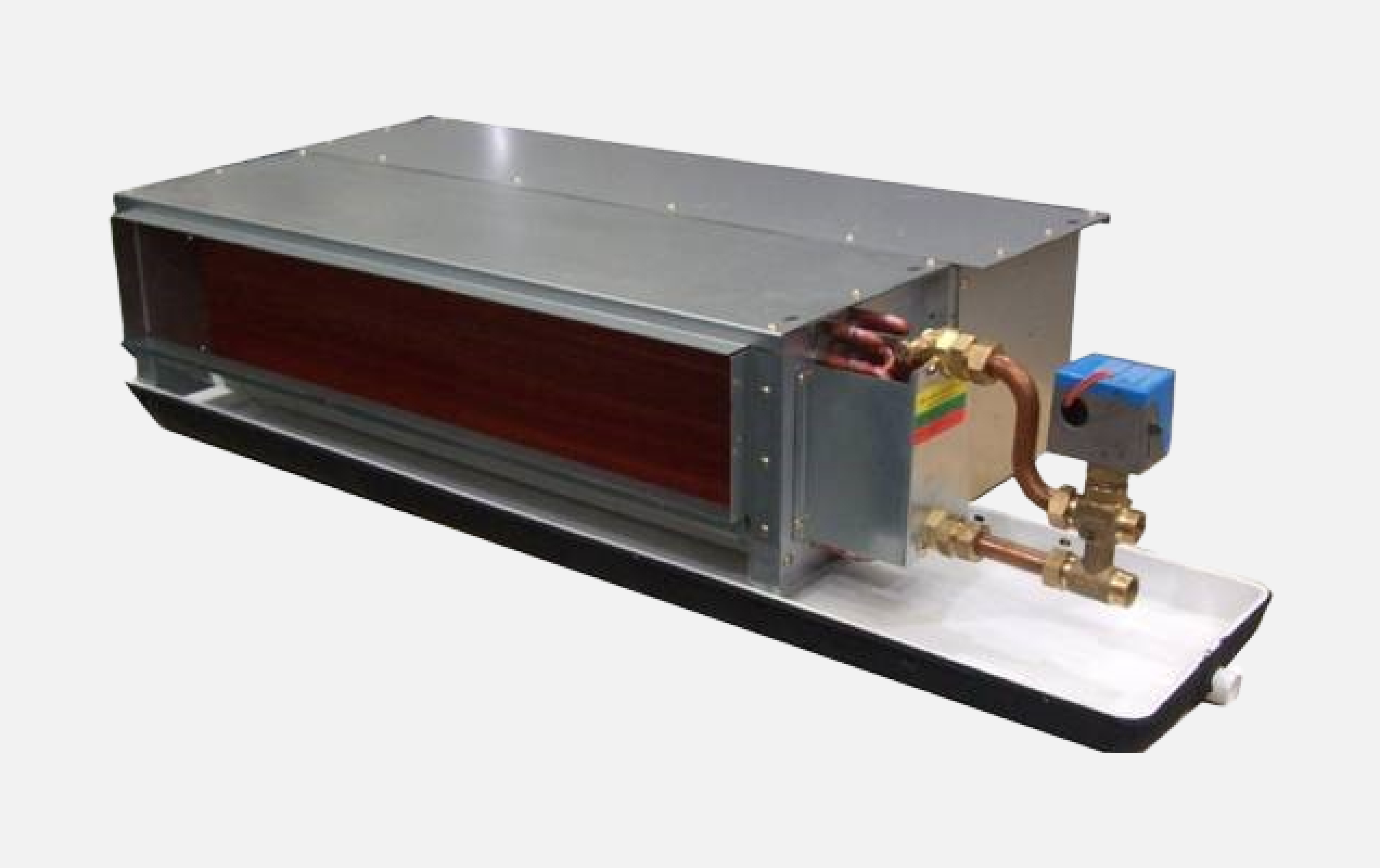

Low Static Fan Coil Units - YGFC

The YGFC Series Fan Coil units are designed to meet various needs of zone cooling & heating utilizing Chilled Water or Hot Water. These YGFC models are suitable for use in various settings, including apartments, hotels, shopping centers, office buildings, and hospitals. They offer efficient performance, flexible design, control options, and good indoor air quality.

Product Key Features:

  • Airflow: 70 – 1400 CFM
  • ESP up to 60Pa
  • AHRI-440 Certified
  • Compact Size and Low height
  • 2 Pipe & 4 Pipe system
  • Suitable for Standard and District Cooling application
  • Horizontal & Vertical installation
YDFC

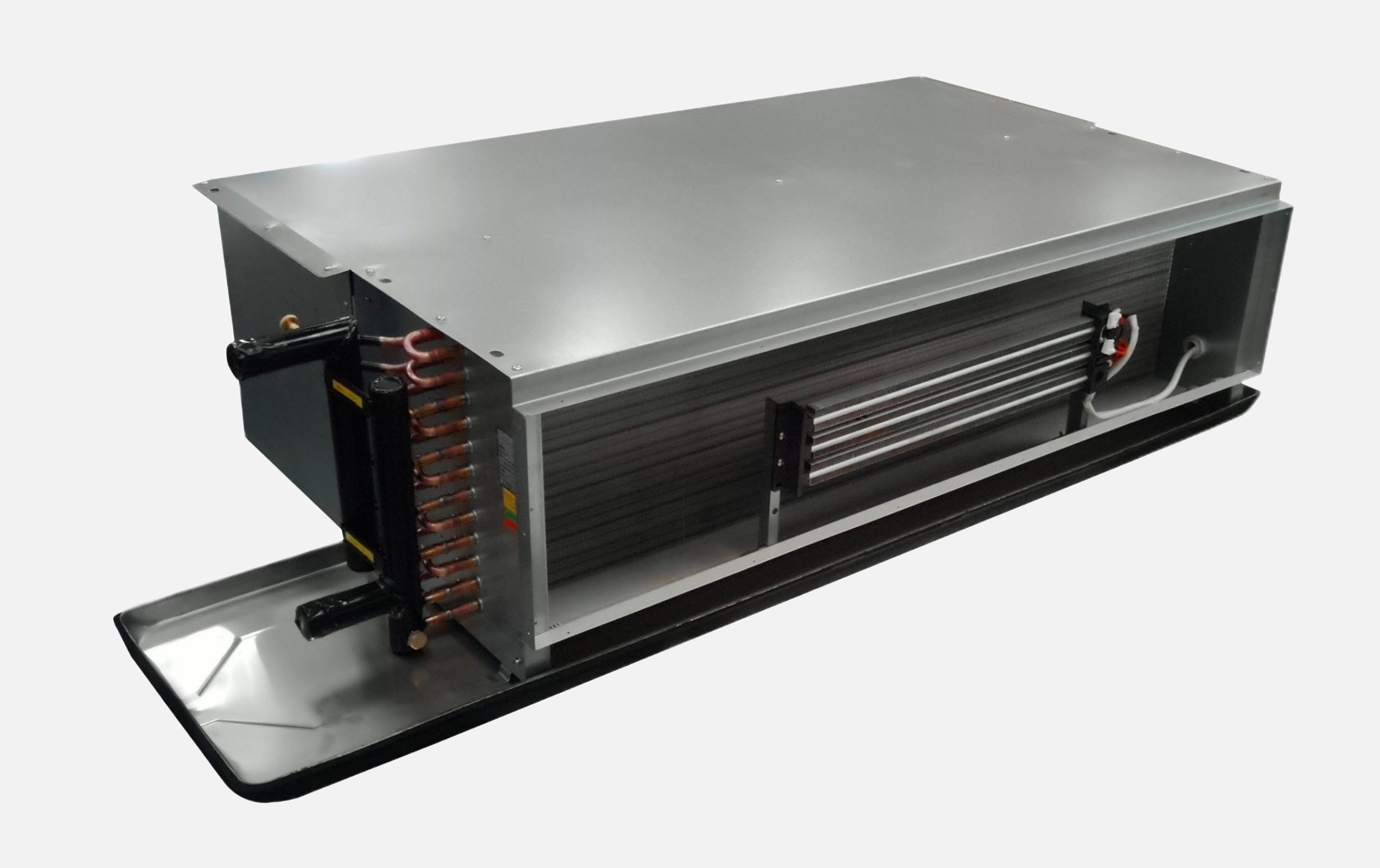

High Static Fan Coil Units - YDFC

The YDFC fan coil units are ceiling-mounted air conditioning terminals with high airflow and high static pressure. These horizontal fan coil units set high standards for quality, flexibility, and competitive pricing.

Product Key Features:

  • Airflow: 200 – 2000 CFM
  • ESP up to 160 Pa
  • AHRI-440 Certified
  • 2 Pipe & 4 Pipe system
  • Suitable for Standard and District Cooling application
YLH

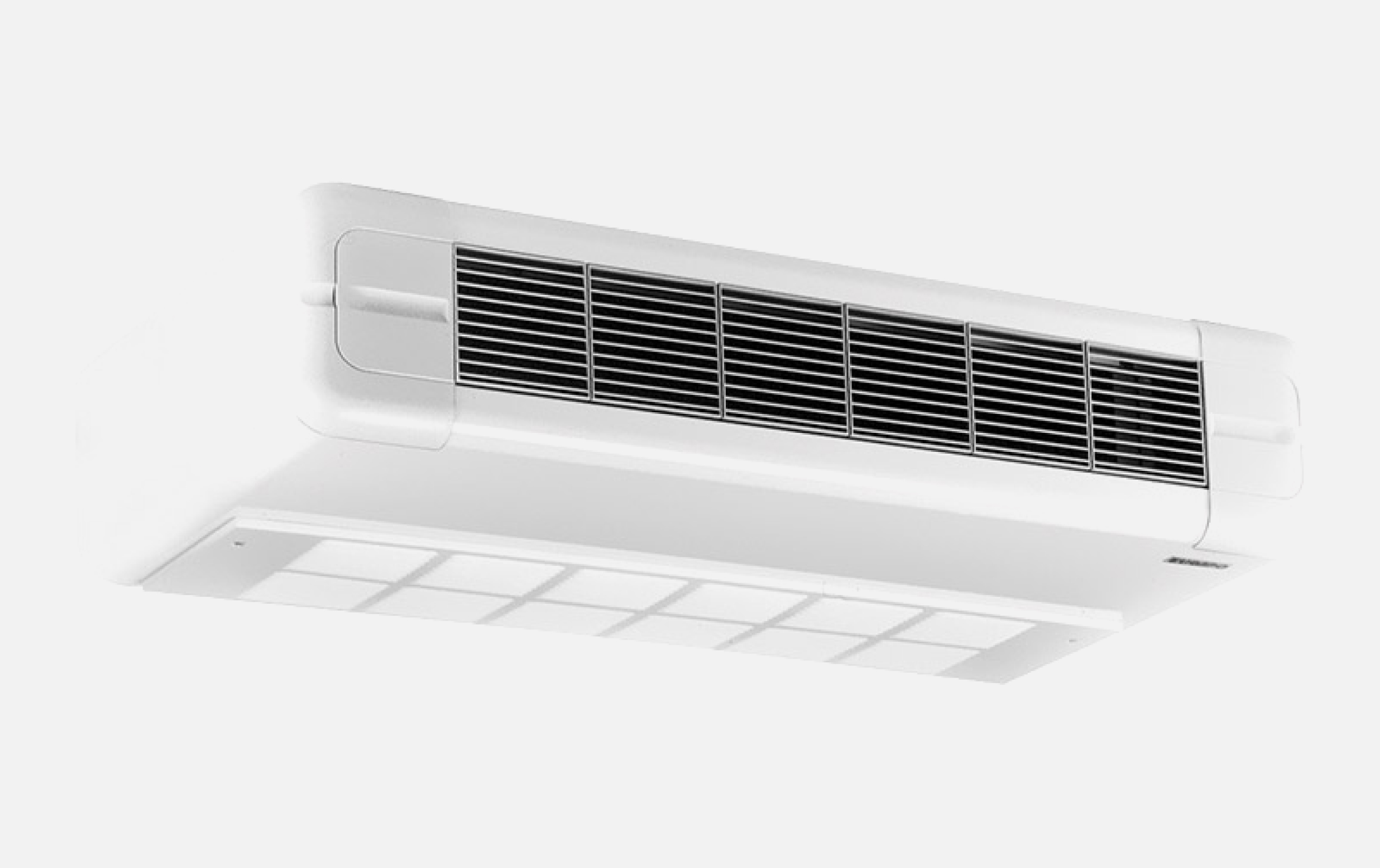

Laser-Concealed-Low Body–YLH/YLV/YLIH/YLIV

The fan coil is suitable for both horizontal and vertical installation. It provides an ideal solution for small spaces and limited dimensions, which are increasingly influencing furniture choices in homes and offices today.

Product Key Features:

  • Airflow: 200 – 1200 CFM
  • ESP up to 60 Pa
  • Eurovent Certified
  • PSC 3 Speed motor or EC (Electronically commutated) Motor
  • 2 Pipe & 4 Pipe system
  • Suitable for Standard and District Cooling application
YEFB

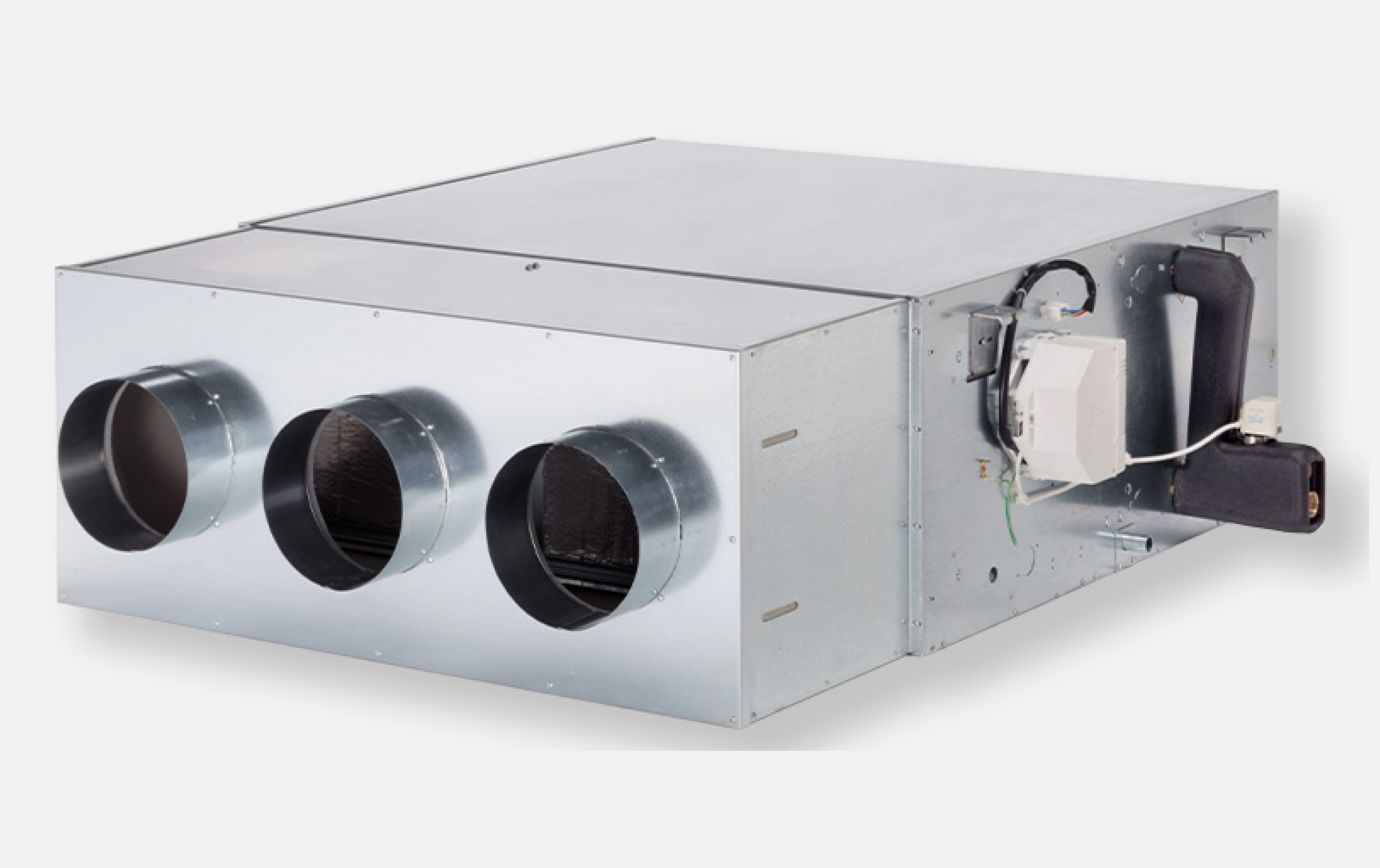

High Pressure Units-YEFB

The YEFB high-pressure ducted fan coils are purpose-built for ducted installations, offering external static pressure capabilities of up to 350 Pa. With their high-pressure fan decks, they can effectively meet the demands of heating and cooling in large spaces.

Product Key Features:

  • Airflow: 600 – 2200 CFM
  • ESP up to 60 Pa
  • PSC 3 Speed motor or EC (Electronically commutated) Motor
  • Eurovent Certified
  • 2 Pipe & 4 Pipe system
  • Suitable for Standard and District Cooling application
YKEY

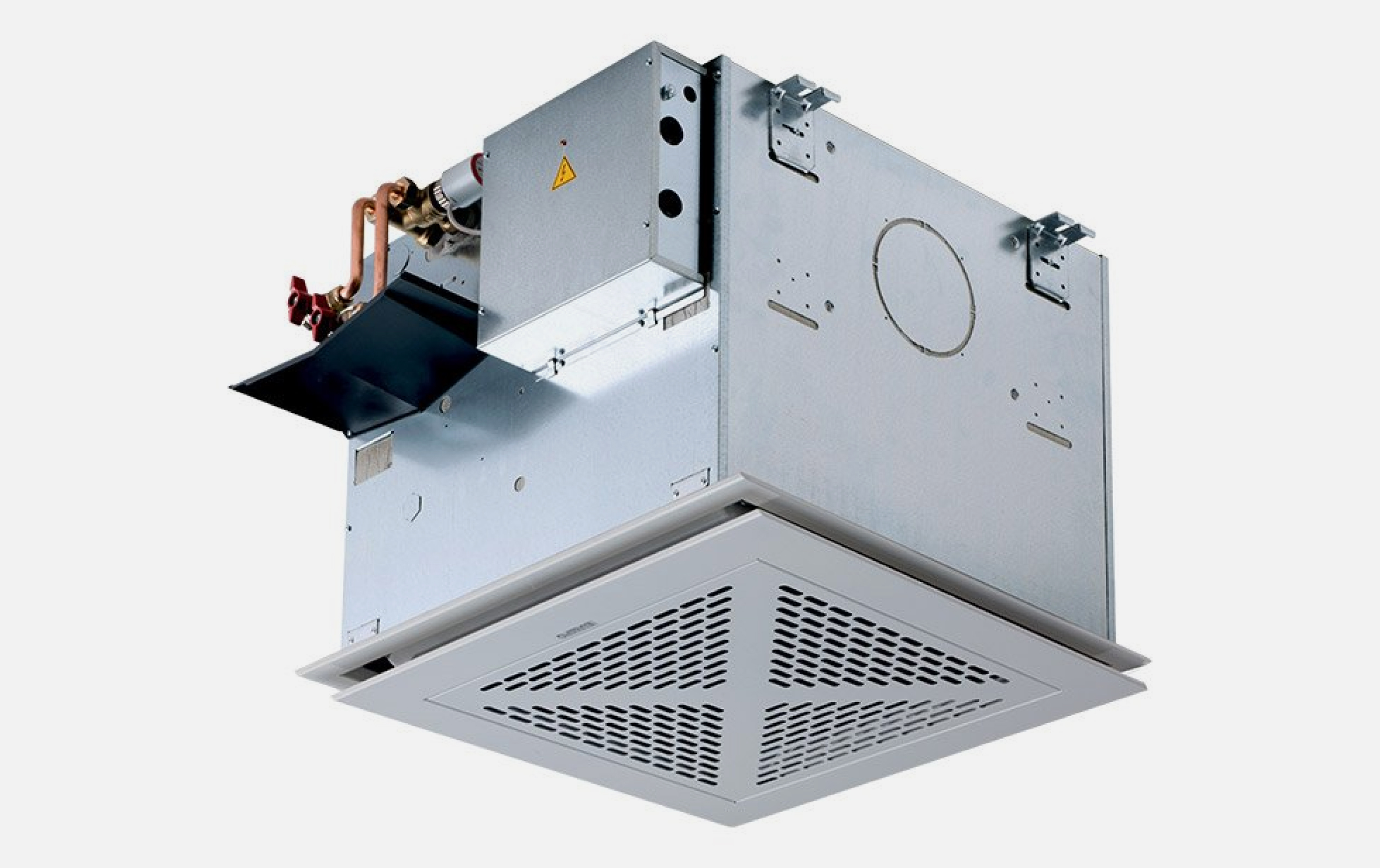

Cassette-YKEY

The YORK YKEY Cassette units are designed for installation on a false ceiling, suitable for cooling, heating and air-handling applications.

Product Key Features:

  • 2 Pipe & 4 Pipe system
  • Suitable for Standard and District Cooling application
  • PSC 3 Speed motor or EC (Electronically commutated) Motor
  • Airflow: 200 – 800 CFM
  • Eurovent Certified
  • Central air intake grill in heat resistant ABS V0 Anti UV, white colour (RAL9003)
CFM

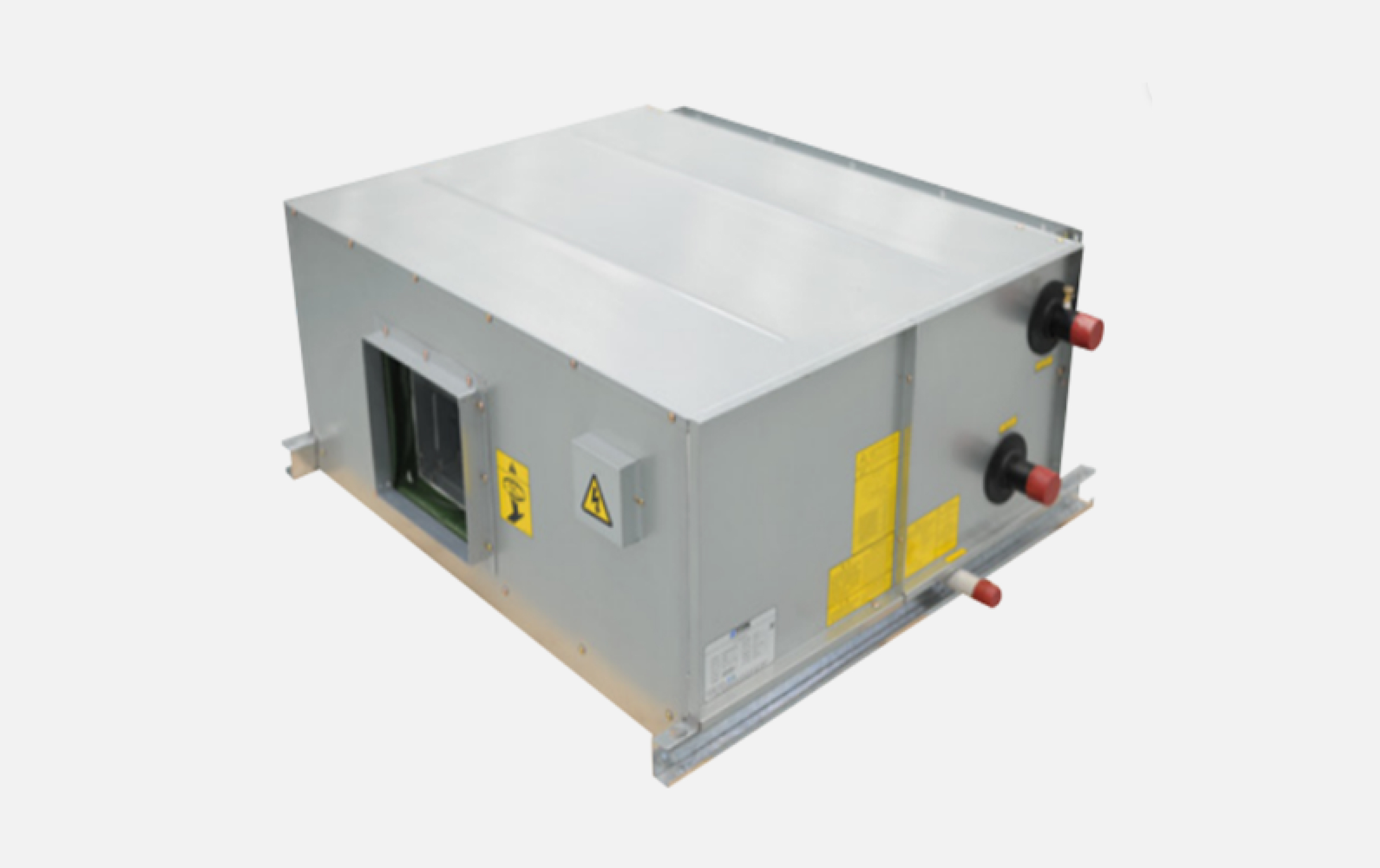

YAH Fan Coil Unit (Air Flow 800 - 8000 CFM)

The YORK YAH Series comprises ceiling-mounted air handling units that serve as crucial terminal points within air conditioning systems. These units are engineered for a variety of functions, including providing fresh air, cooling, heating, humidity control, dehumidification, air filtration, and purification.

Product Key Features:

  • Easy installation
  • Lower unit height for low head floor ceiling application
  • Low Noise
  • Filter can be withdrawn from side or bottom
