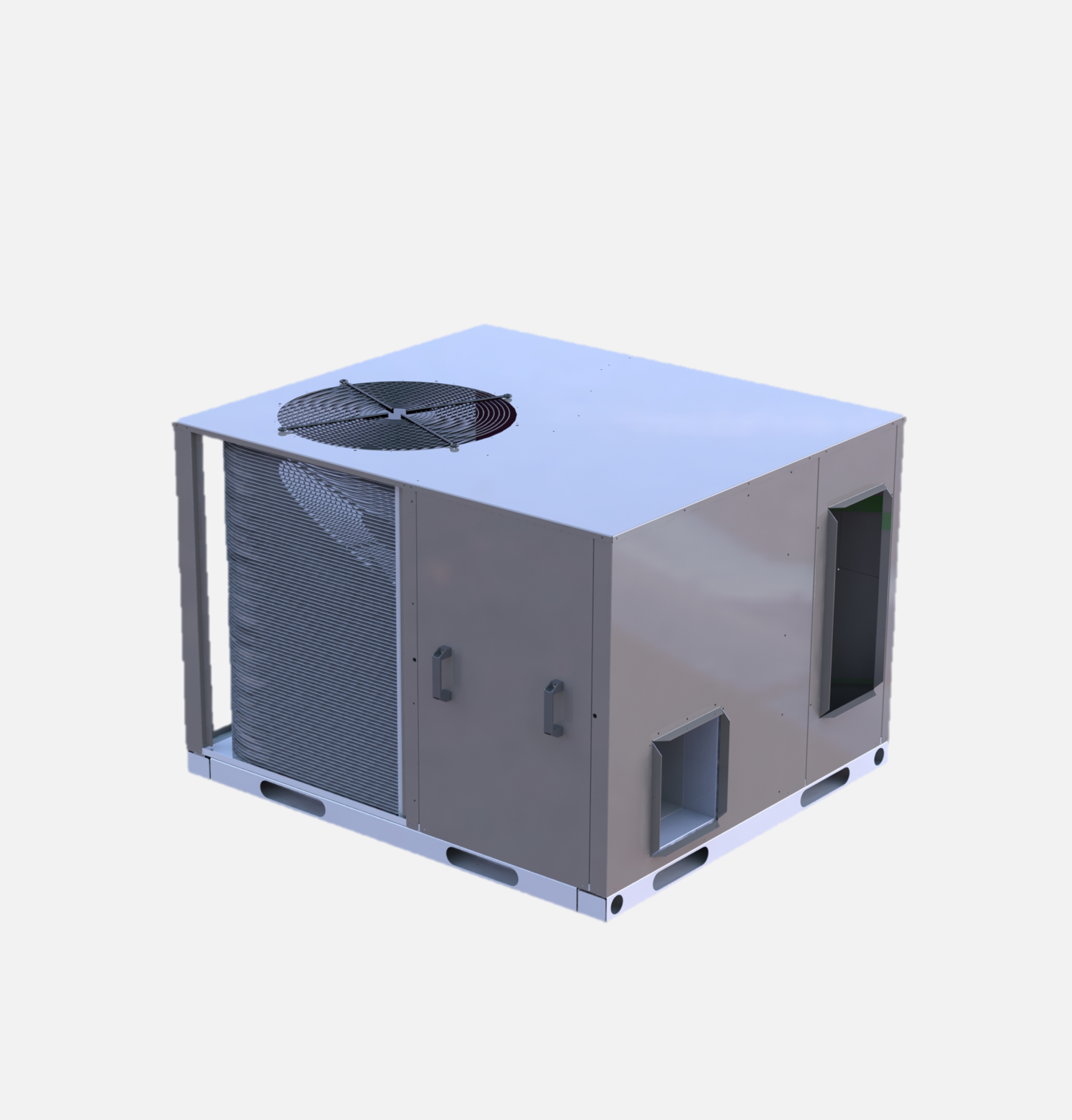

DEH Stellar Micro Series

YORK STELLAR Units are single package energy efficient high ambient rooftops air conditioners. All Models have single refrigerant circuits for efficient part load operation. STELLAR units are designed for roof top slab mounted at ground level or on steel platform installation above floor or roof. A wide range of factory mounted options and field installed accessories make the STELLAR units suitable for almost every application.

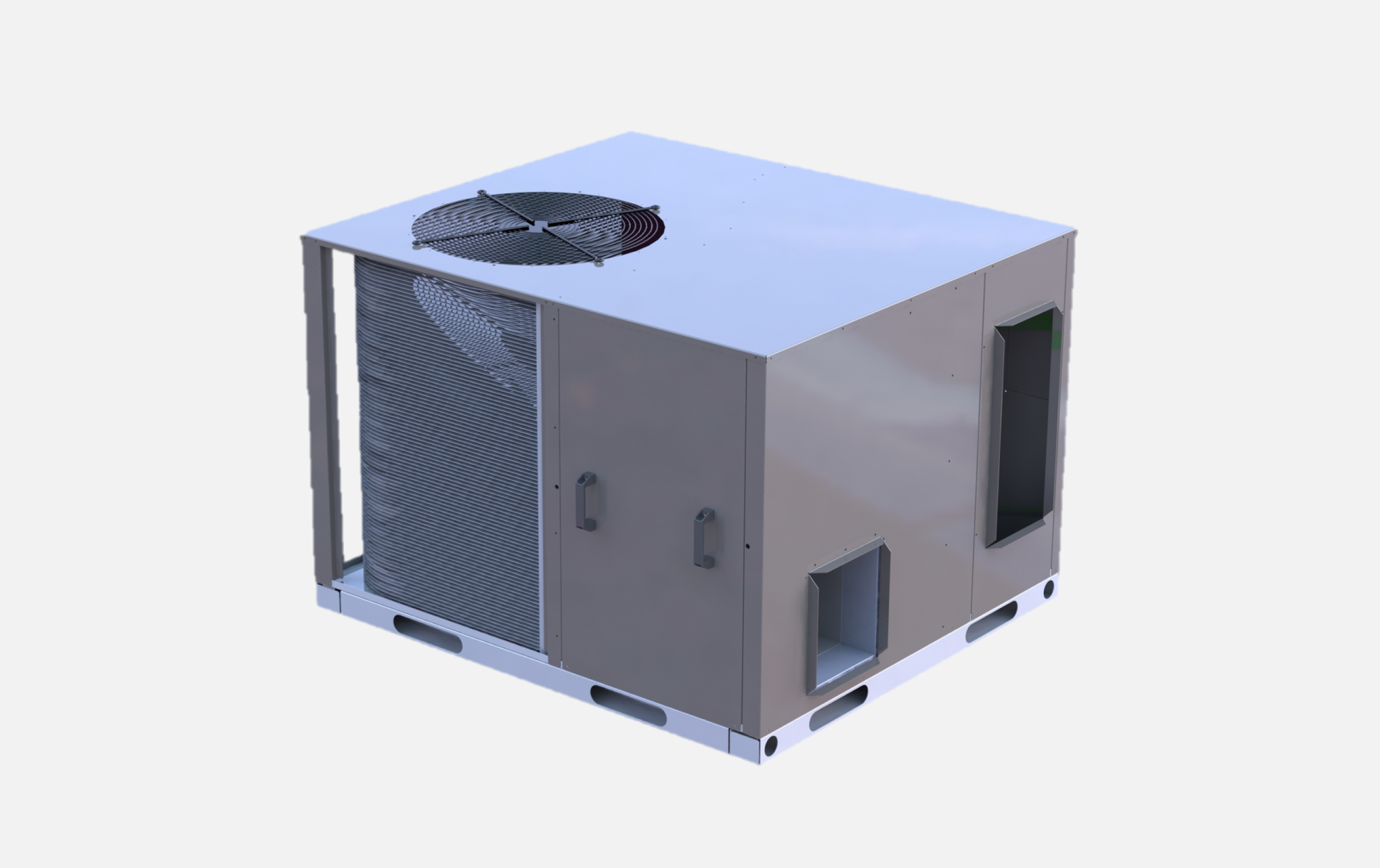

Models DEH 036, 048, 060, 072 (3, 4, 5, 6 Nominal Tons)

YORK STELLAR Units are single package energy efficient high ambient rooftops air conditioner. All Models have single refrigerant circuits for efficient part load operation.STELLAR units are designed for roof top slab mounted at ground level or on steel platform installation above floor or roof. A wide range of factory mounted options and field installed accessories make the STELLAR units suitable for almost every application.YORK STELLAR units are designed to operate satisfactorily in wide range of ambient temperatures from 131°F (55°C) down to 50°F (10°C) as standard. YORK STELLAR packaged air conditioners are rated in accordance with AHRI 340/360.

All standard units include

Powder paint finish that meets ASTM B 117, 750 hour salt spray standard.
Single stage cooling provided by single independent refrigeration circuits with expansion valves, filter drier, high and low pressure switches.
High efficiency compressors.
Side air discharge configuration.
Direct drive arrangement.
Totally Enclosed Air over (TEAO) Evaporator fan motors with Class B Insulation.
Totally Enclosed Air over (TEAO) Condenser fan motors with Class B/F Insulation.

Fresh air intake panel.
Copper tubes / Aluminum fins Evaporator coils.
Micro-Channel Aluminum alloy Condenser coils.
20%-35% lighter than the market-average chiller, reducing support-structure costs.
2 inch disposable filter with easy access.
Rigging holes in base rails for overhead lifting.
Single point power connection.
Complete factory package-tested, charged and wired

Options Available

Heresite Coated Evaporator Coils (factory installed): Coating is applied by spray for maximum corrosion protection
Techno Coating and E-Coating Condenser Coils (factory installed)
Copper Tube and Copper Fin Evaporator Coils (factory installed)
Filter Options: Standard units are shipped, installed with 2” throw away filters. 2” washable aluminum filters
Fresh Air Dampers: Manual or motorized
Smoke Detectors for supply air & return air (factory installed): The smoke detectors stop operation of the unit by interrupting power to the control board if smokes detected within the air compartment

Electric Heaters: All electric heat models (heater fac- tory/field installed only) are wired for a single power source and include a bank of nickel chromium elements to be mounted at the discharge of the supply air blower to provide a high velocity and uniform distribution of air across the heating elements. Every element is fully protected against excessive current and temperature by high temperature thermal cut-out (HTIC).
Main Disconnect Switch (factory installed): Suitably sized in accordance with the applicable electrical codes
Thermostat (field installed): For Single stage cooling only and a single stage heating.
