A versatile range of high-efficiency systems from 4HP to 12HP, designed to deliver reliable comfort, flexible installation, and optimal energy performance for modern spaces.

Request Consultation

Key Features & System Design Advantages

YORK® Mini VRF systems feature dual-frequency (50/60Hz) operation and a side-discharge design, delivering efficient, reliable performance while minimizing space requirements and enabling flexible installation.

High-Performance, Energy-Saving HVAC Solutions

DC Inverter Compressor: Uses a DC inverter compressor with up to 5% lower power input (14 kW), ensuring efficient and stable operation.
DC Fan Motor with 550 mm Large Fan: Achieves up to 38% lower power consumption and 8% higher airflow for improved system performance.
Larger Heat Exchanger: Increased heat exchange area by 10% (14 kW), enhancing cooling efficiency and reliability.
Built-in Charge Valve: Enables safer, faster, and more convenient maintenance.
Low Standby Power Consumption: Optimized PCB programming reduces standby power usage by up to 20%.

Superior Comfort for a Quiet and Relaxing Environment

New Aerodynamic Fan: Features a 550 mm large-diameter aerospace helix fan that reduces noise levels by up to 3 dB(A).
Optimized Airflow Design: Enlarged air inlet and spiral air outlet paths guide airflow along the grille direction, lowering noise by an additional 2–4 dB(A).
Automatic Sound-Lowering Program: Night mode controlled by the PCB reduces operating noise by up to 8 dB(A) for quieter operation during nighttime hours.

Enhanced Convenience for Easy Installation and Maintenance

Double-Side Handles: Equipped with sturdy handles on both sides for easy carrying and installation.
“888” Test Panel: Displays all running data and error codes on the easy-to-read “888” screen, simplifying troubleshooting and setup for installers.
Four-Way Pipe Connection: Flexible 4-way (front, back, left, right) pipe connections make system design and installation more convenient and adaptable to different layouts.

YORK Mini VRF Console Indoor Unit – Compact HVAC Solution

YORK Console Indoor Units

Compact Design & Space-Saving: Small footprint ideal for limited spaces without compromising performance.
Quiet Operation: Designed for minimal noise, ensuring a comfortable indoor environment.
Flexible Air Discharge: Air can be discharged through the top (cooling) or bottom (heating) for versatile airflow management.
Control Options: Comes with a standard wired controller, with an optional wireless controller for added convenience.
2-Way Air Outlet: Provides uniform and efficient air distribution.
Emergency Operation: Supports emergency mode for reliable performance during unexpected situations.
High-Efficiency Filter: Improves indoor air quality while maintaining system efficiency.
Easy Installation: Compact and lightweight design allows quick and flexible installation.

YORK Mini VRF Mini Cassette Indoor Unit – High‑Efficiency HVAC Solution

YORK Mini Cassette Indoor Units

Compact Design for Flexible Installation: Reduced installation restrictions allow high flexibility in various room layouts.
Standard Ceiling Tile Compatibility: Body size 570×570 mm and panel size 620×620 mm, ideal for small rooms and standard ceiling tiles.
DC Fan Motor: Ensures low noise operation and high energy efficiency for a comfortable environment.
Automatic Fault Display: Quickly identifies issues for easier maintenance and troubleshooting.
Built-in Drain Pump and EEV: Enhances operational reliability and simplifies installation.
Innovative 4-Way Independent Airflow Control: Allows precise and uniform distribution of air throughout the room.
Control Options: Comes with a standard wired controller, with an optional wireless controller for added convenience.

YORK Mini VRF One-Way Cassette Indoor Unit – Quiet and Efficient Airflow

YORK One-Way Cassette Indoor Units

Space-Saving Hanging Installation: Designed for hanging-style setup to optimize room space.
DC Fan Motor: Ensures low noise operation and high energy efficiency for a comfortable indoor environment.
Automatic Fault Display: Quickly identifies and displays operational issues for easier maintenance.
Built-In Drain Pump: Enhances reliability and simplifies installation.
Power Supply Compensation: Automatically resumes previous operating conditions after a power outage, ensuring uninterrupted comfort.
Flexible Control Options: Includes a basic wired controller, optional wireless controller, and optional central control compatibility.
Consistent Operation Across Shapes: Functions and operating methods remain consistent regardless of indoor unit design.
Maintenance-Friendly Design: No extra service port needed; removing the return air panel makes maintenance straightforward and keeps the unit aesthetically clean.
Slim Profile: Only 185 mm in height, allowing discreet integration into ceilings.

YORK Mini VRF Two-Way Cassette Indoor Unit – Flexible and Compact Design

YORK Two-Way Cassette Indoor Units

Stylish Design: Sleek appearance allows seamless integration with any interior décor.
Compact Height: Main body height of just 280 mm for discreet ceiling installation.
Quiet Operation: Low-noise design ensures a comfortable indoor environment.
Easy Installation: Designed for quick and flexible installation in various layouts.
Built-In Water Pump: Supports a maximum head of 750 mm for reliable drainage.
Easy Cleaning & Maintenance: Flat-type suction grille allows simple cleaning and maintenance.
Flexible Control Options: Comes with a standard wired controller, with an optional wireless controller for added convenience.

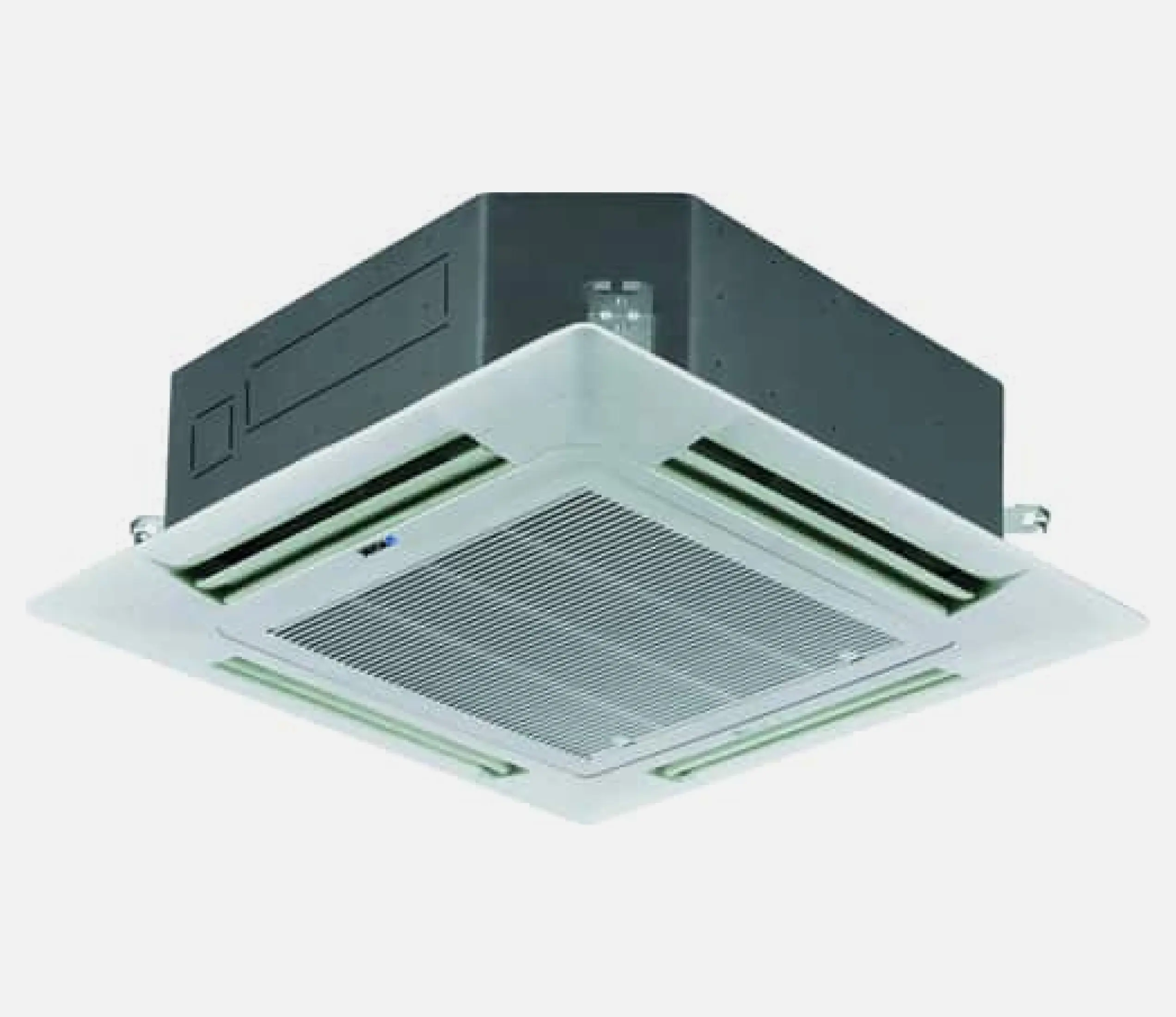

YORK Mini VRF Four-Way Cassette Indoor Unit – Flexible and Compact Design

YORK Four-Way Cassette Indoor Units

Quiet Operation: New irregular helix fan blade design allows the unit to operate at minimal noise levels for enhanced comfort.
Built-In High-Head Drain Pump: Standard pump supports up to 750 mm head, ensuring reliable and efficient water drainage.
Fresh Air Inlet (Except 5.8/7.1/8.0 kW Models): Pre-set fresh air inlet introduces outside air into the room, improving indoor air quality and reducing “air conditioner symptoms.”
Branch Outlets (Except 2.8/3.6/4.5 kW Models): 1 or 2 branch outlets enable flexible airflow distribution for better room coverage.
Advanced Installation & Maintenance Features: 90° rotatable suction grille and flexible installation direction simplify setup and maintenance.
Compact Design for 2.8/3.6/4.5 kW Models: Panel dimension 700×700 mm and unit dimension 570×570 mm reduce footprint, making installation easier.
Flexible Control Options: Standard wired controller included; optional wireless controller available.

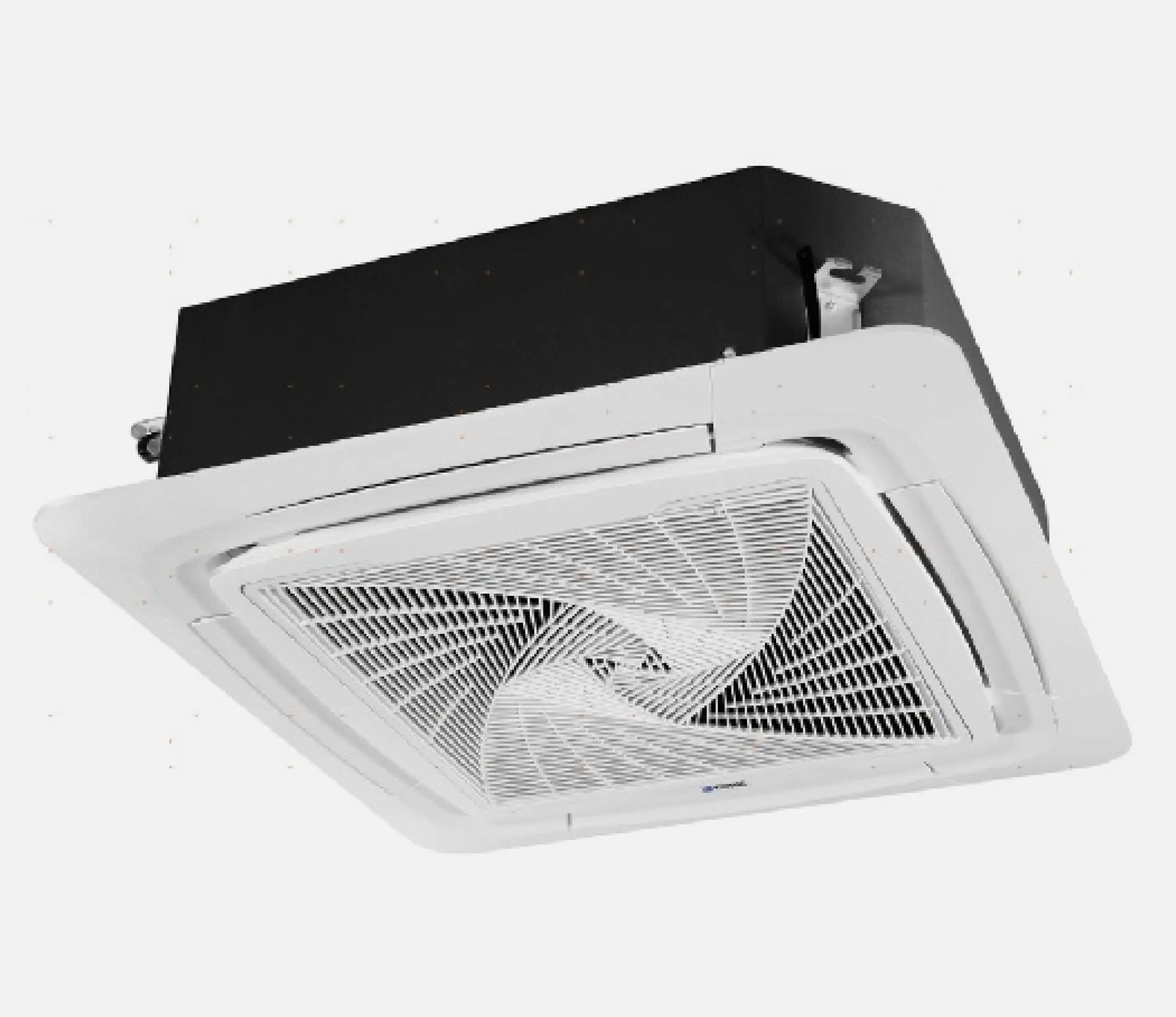

YORK Mini VRF Round-Way Cassette Indoor Unit – Smart 4-Way Airflow Control

YORK Round-Way Cassette Indoor Units

Automatic Fault Display: Quickly identifies and shows operational issues for easier maintenance.
Built-In Drain Pump: Ensures reliable water drainage and simplifies installation.
Power Supply Compensation: Automatically resumes previous operating conditions after a power outage, ensuring uninterrupted comfort.
Flexible Control Options: Includes a basic wired controller, optional wireless controller, and optional central control.
Consistent Operation Across Shapes: Operating methods and functions remain the same regardless of indoor unit shape.
Unique Round-Way Air Outlet: Provides uniform air distribution with no blind spots.
Innovative 4-Way Independent Airflow Control: Allows precise, customizable airflow in all directions.
Adjustable Louvers: Six louver positions create up to 1,296 airflow combinations for optimal comfort.
Optional “Move Eye” Intelligent System: Provides smart, all-around comfort by detecting room occupancy and adjusting airflow accordingly.

YORK High Wall Indoor Unit – Stylish, Quiet, and Efficient Air Conditioning

YORK High Wall AC Indoor Units

LED Display: Easy-to-read interface for monitoring system status and settings.
Built-In EEV: Enhances precise refrigerant control for improved efficiency and comfort.
Stylish Design: Sleek appearance that integrates seamlessly into modern interiors.
Super Quiet Operation: Low-noise performance ensures a comfortable indoor environment.
3D Airflow: Provides uniform air distribution for consistent cooling and heating.
Intelligent Air Direction Control: Cooling air is directed upwards while heating air flows downward for optimal comfort.
Optional Filters: Vitamin C and ESF filters are available to improve indoor air quality.
Flexible Control Options: Wireless controller included as standard, with wired controller optional.
Drain Limitations: Does not include a built-in high-head drain pump and is not compatible with an external drain pump.

YORK Floor-Ceiling Indoor Unit – Flexible Installation and Wide-Angle Airflow

YORK Floor-Ceiling Indoor Units

Flexible Installation: Can be installed on the floor or in the ceiling, providing versatile placement options.
Space-Saving Design: Ultra-thin body (only 199 mm for 2.8–7.1 kW models) reduces installation space requirements.
Easy Service & Maintenance: Simplified design allows quick access for maintenance and installation.
Wide-Angle Air Supply: 100° wide-angle louvers and 70° wide-angle blades ensure precise and uniform airflow.
Comfortable Air Distribution: Air is equally distributed to every corner of the room for consistent comfort.
Drain Options: No built-in drain pump; optional external drain pump available for flexible installation.
Optional ESF Filter: Improves indoor air quality.
Flexible Control Options: Standard wired controller included, with optional wireless controller for added convenience.

YORK Slim Low Static Pressure Duct Indoor Unit – Compact and Concealed Installation

YORK Slim Low Static Pressure Duct Indoor Units

Ultra-Thin Space-Saving Design: Compact profile (185 mm height × 500 mm depth) reduces installation space requirements.
Selectable External Static Pressure: 0 or 30 Pa options allow flexible integration into different duct systems.
Knock-Down Drain Pan: Easy to disassemble for simplified maintenance.
Two-Side Drainage: Drain pan direction can be adjusted to allow drainage from either side.
Built-In High-Head Drain Pump: Supports up to 750 mm for reliable drainage.
Concealed Installation: Perfectly integrates with room interiors for a clean, unobtrusive look.
Multi-Mode Installation: Compatible with setups with or without air return ducts and supports bottom or rear air return.
Flexible Control Options: Standard wired controller included, with optional wireless controller.

YORK Medium Static Pressure Duct Indoor Unit – Adjustable Airflow and Easy Installation

YORK Medium Static Pressure Duct Indoor Units

Optional External Drain Pump: Available for 9.0–14 kW models to ensure reliable drainage.
Flexible Air Discharge: Allows free setting of air discharge ducts to suit different installation layouts.
Customizable Airflow and Positioning: Enables selection of air flow outlets and installation positions for optimal comfort and space utilization.
Flexible Control Options: Standard wired controller included, with optional wireless controller for added convenience.
Slim and Discreet Design: Hidden installation with an elegant, ultra-thin profile that blends seamlessly with interiors.
Standard Drain Pump: Built-in pump with a maximum lift of 700 mm for reliable drainage.
Fresh Air Inlet: Side-mounted fresh air openings improve indoor air quality and support a healthier environment.
Adjustable T-Shaped Lifting Eye: Provides flexibility in width and length directions for easier handling during installation.
Automatic Fault Display: Quickly identifies operational issues for easier maintenance.
Heat-Retaining Pipe Liner: EPS material improves sealing and energy efficiency.
Uniform Height Across Series: Consistent 248 mm height saves vertical space and simplifies design planning.
Easy Installation: Streamlined design and flexible features make setup quick and convenient.

YORK High Static Pressure Duct Indoor Unit – High-Performance Air Distribution

YORK High Static Pressure Duct Indoor Units

High External Static Pressure Design: Supports demanding duct systems with maximum external static pressure up to 196 Pa.
Selectable Static Pressure: Choose between 100 Pa or 196 Pa to suit specific installation requirements.
Optional External Drain Pump: No built-in drain pump; external pump can be added as needed for reliable drainage.
Flexible Air Discharge: Free adjustment of air discharge ducts for versatile system layout.
Customizable Airflow and Positioning: Allows selection of air flow outlets and installation positions for optimal comfort.
Flexible Control Options: Standard wired controller included, with optional wireless controller for convenience.

YORK Fresh Air Unit – Integrated Ventilation for Residential and Light Commercial Spaces

YORK Fresh Air Units

Integrated Installation: Designed to be installed alongside other indoor units for seamless system integration.
Capacity Guidelines: Installed capacity should not exceed 30% of the connected outdoor unit capacity for optimal performance.
Control Options: Comes with a standard wired controller; wireless controller is not available.
Static Pressure: Designed for 100 Pa static pressure applications.
Wide Operating Temperature Range: Operates reliably in ambient temperatures from -5°C to 43°C.

YORK Build-In Floor Standing Indoor Unit – Compact and Under-Window Installation

YORK Build-In Floor Standing Indoor Units

Automatic Fault Display: Quickly identifies operational issues for easier maintenance.
Power Supply Compensation: Automatically resumes previous operating conditions after a power outage for uninterrupted comfort.
Flexible Control Options: Includes basic wired controller, optional wireless controller, and optional central control.
Space-Saving Design: Requires only 0.26 m² of installation space, ideal for compact areas.
Under-Window Installation: Perfect solution for placement beneath windows without obstructing space.
High-Efficiency Filter: Standard filter improves indoor air quality while maintaining system efficiency.
