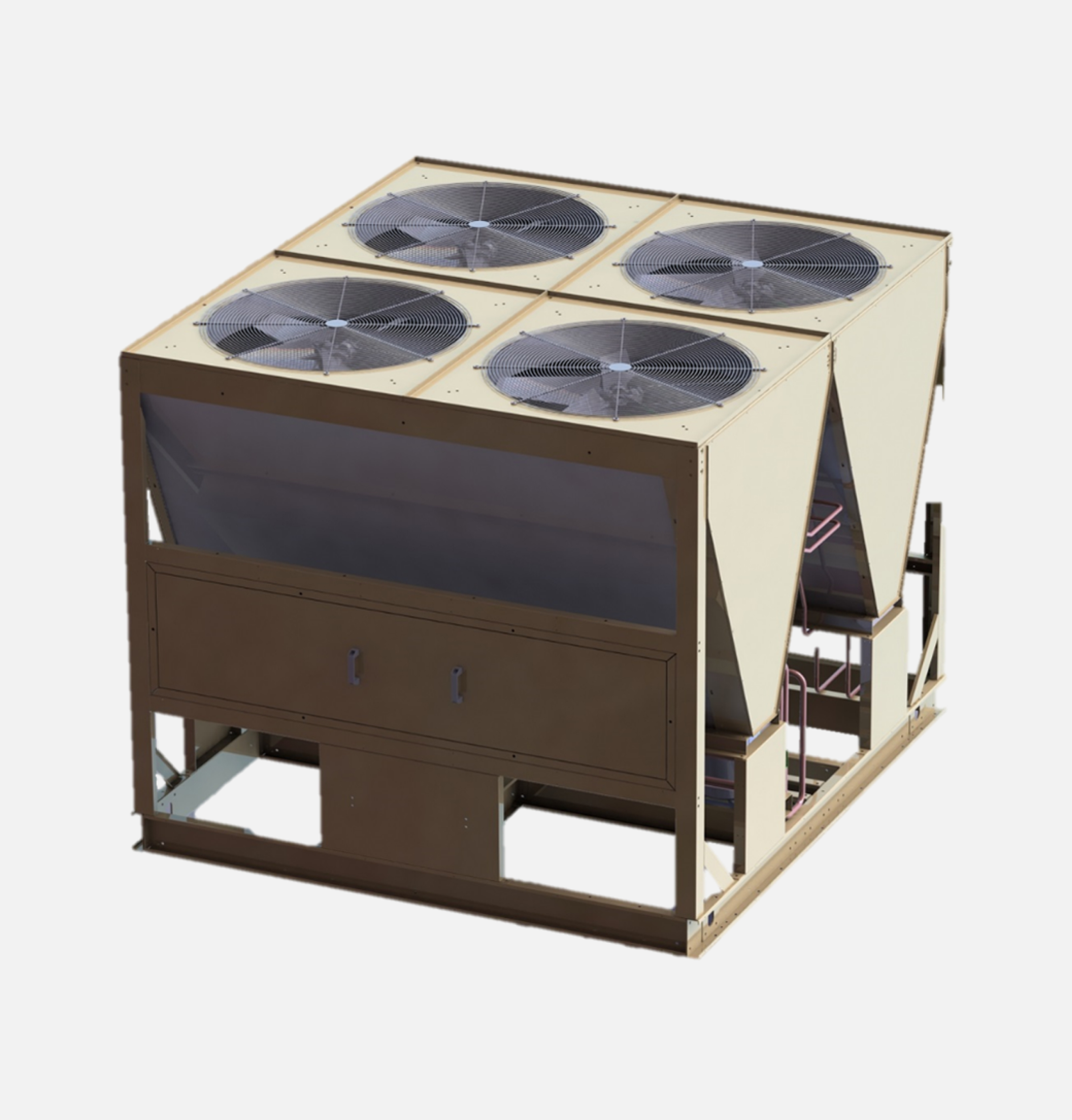

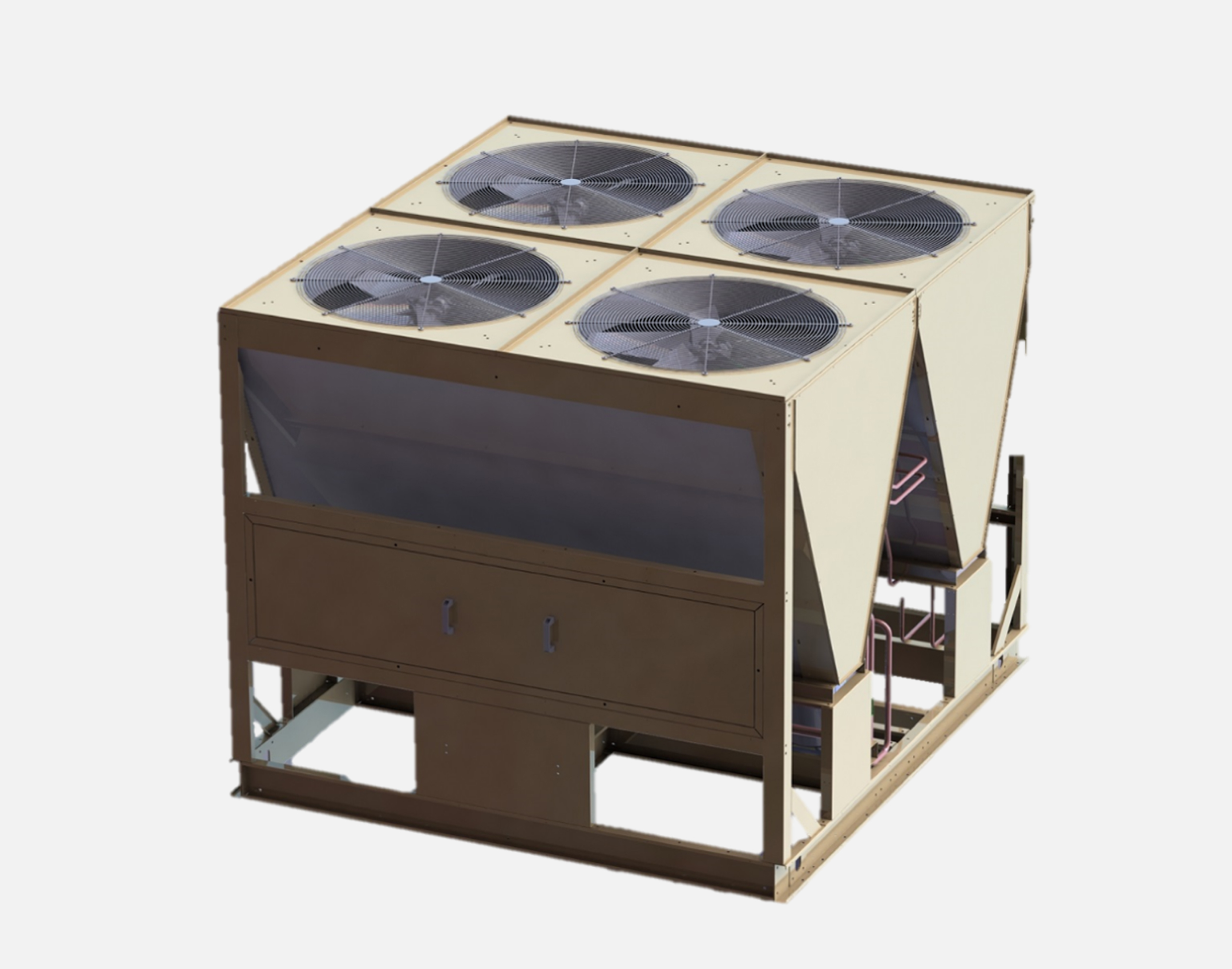

DCH STELLAR Medium And Major Series

YORK STELLAR 60hz Air cooled condensing units are high efficiency units. All 150 to 360 have independent dual refrigerant circuits, 420 & 480 have three independent refrigerant circuits while model 600 has four independent refrigerant circuits for efficient part load operation

Air Cooled Condensing Units 12.5 to 50 TR - (R410a)

Models DCH 150,190,220,250,300,340,360,420,480 & 600 (16, 18, 21, 25, 28, 30, 35, 40 & 50 Nominal Tons)

YORK STELLAR Air cooled condensing units are high efficiency units. All 150 to 360 have independent dual refrigerant circuits, 420 & 480 have three independent refrigerant circuits while model 600 has four independent refrigerant circuits for efficient part load operation. Although the units are primarily designed for roof top slab mounted at ground level or on steel platform installation above floor or roof. A wide range of factory mounted options and field installed accessories make the STELLAR units suitable for almost every application.
YORK STELLAR units are designed to operate satisfactorily in wide range of ambient temperatures from 131°F (55°C) down to 50°F (10°C) as standard.
YORK STELLAR Condensing units are rated in accordance with AHRI 365

All Standard Units Include

Powder Paint Finish That Meets ASTM B 117, 750 Hour Salt Spray Standard
Multi-Stage Cooling Provided By Two, Three Or Four Independent Refrigerant Circuits With Filter Driers, High And Low Pressure Switches And Freeze-Stats
High Efficient Scroll Compressors
Copper Tubes / Aluminum Fins Condenser Coils

Totally Enclosed Air Over (TEAO) IP55 Condenser Fan Motors With Class F Insulation. Microprocessor Based Simplicity TM Control Board
Rigging Holes In Base Rails For Overhead Lifting. Single Point Power Connection
1 Year Limited Warranty On The Complete Unit And Additional 4 Years Warranty On Compressors

Options Available

Factory Installed: Coating Is Applied By Spray For Maximum Corrosion Protection
Copper Tube And Copper Fin Condenser Coils (Factory Installed)
Service Valves ( factory installed): Compressor service valves for suction & discharge line
Phase Monitors ( factory installed): Design to prevent unit damage, the phase monitor will shut the unit down in an out-of phase condition

Main Disconnect Switch (Factory Installed): Suitably Sized In Accordance With The Applicable Electrical Codes
Thermostat (Field Installed): 2 to 4 Stage Cooling
BMS Controls: Johnson Controls YORK Stellar series units offer factory mounted BMS controls- Consult your local sales office for details
Low Ambient Kit (Factory Installed): For Unit To Work Satisfactorily Down To 32°F (0°C
