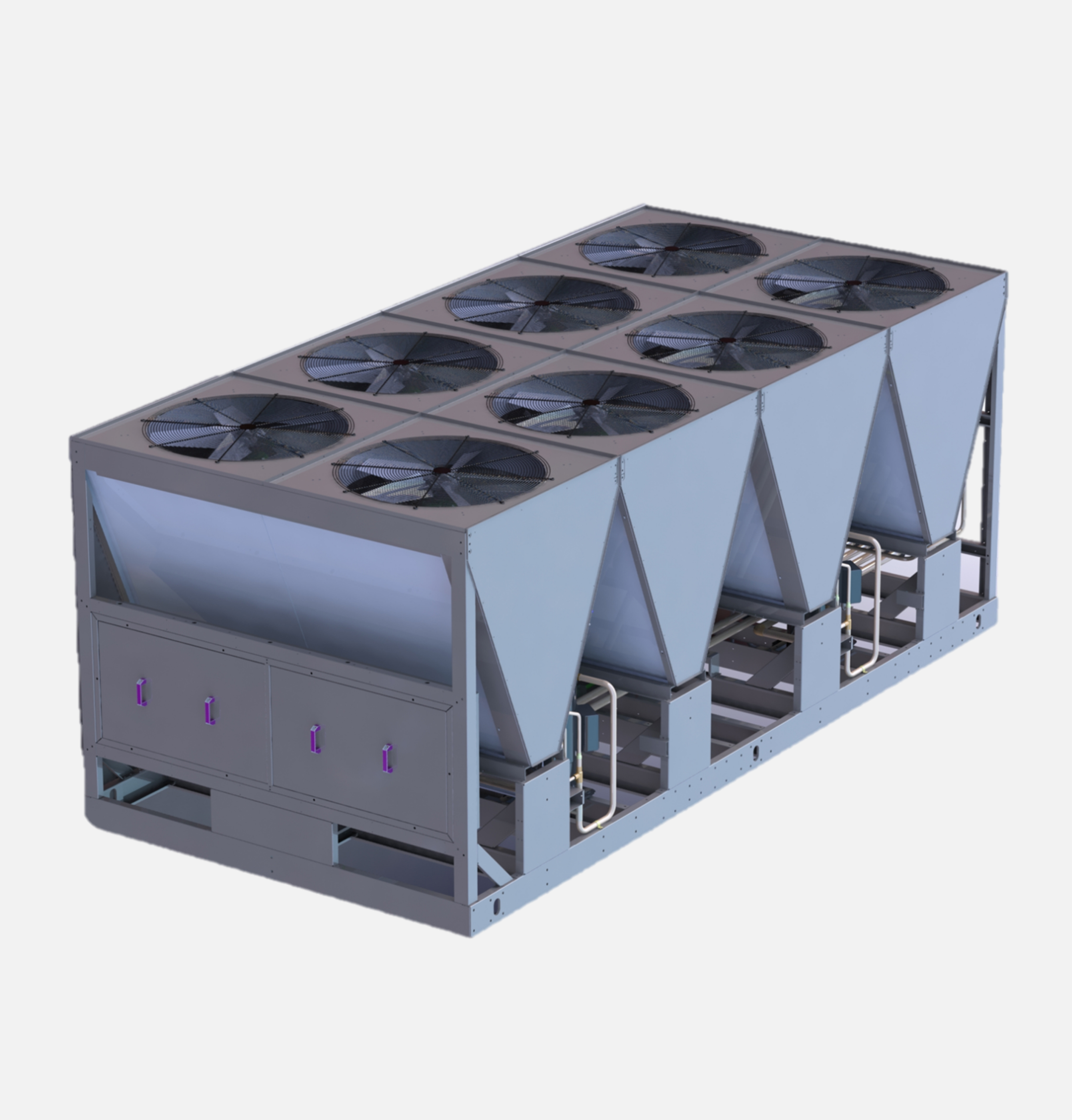

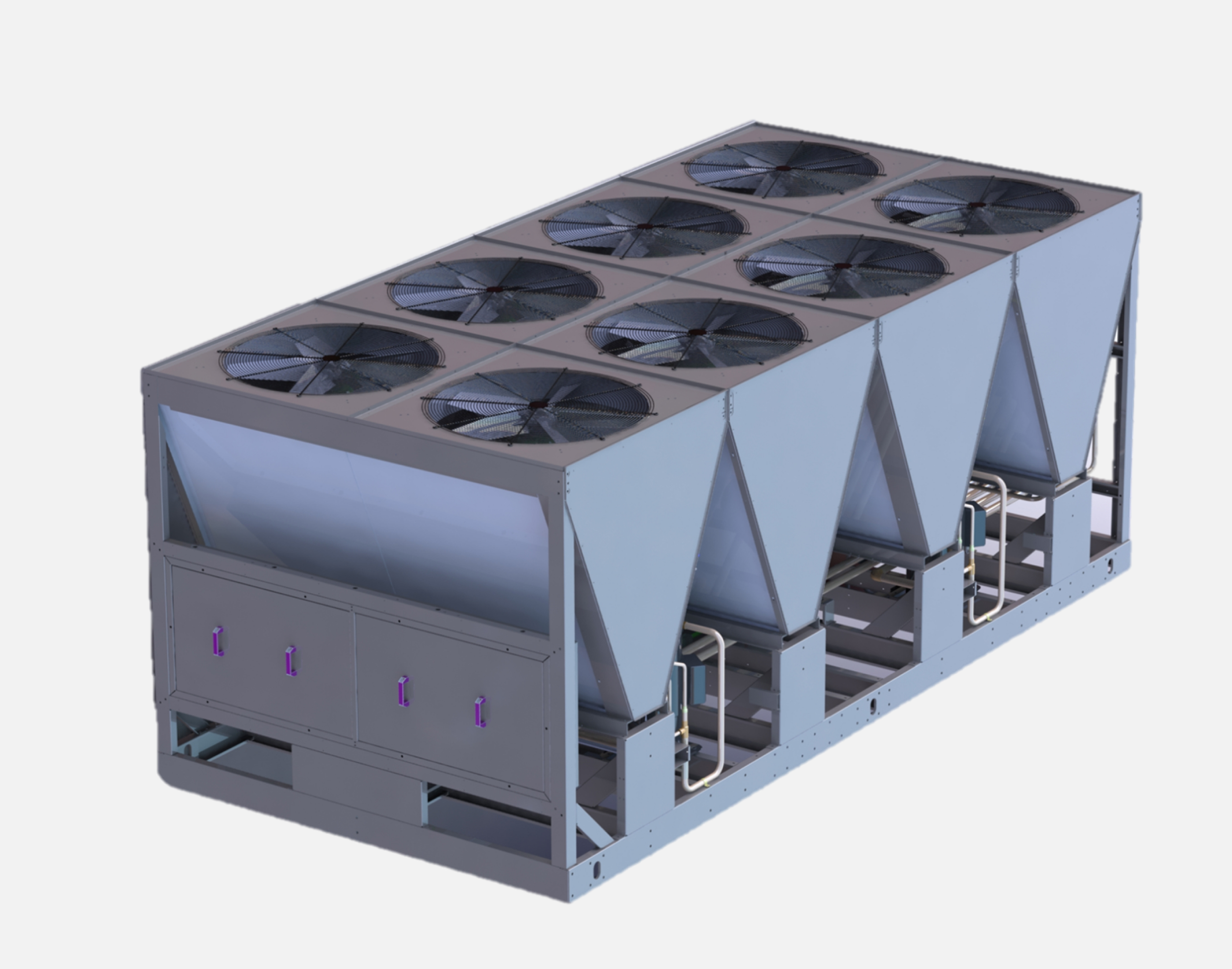

DCH Stellar Mega Series Rooftop Systems

Name: DCH Stellar Mega Series | RTUs | Johnson Controls Arabia KSA
Brand: جونسون كنترولز

YORK STELLAR 60hz Air cooled condensing units are high efficiency units.780 & 900 have 3 independent refrigerant circuits, 1080 & 1200 have 4 independent refrigerant circuits for efficient part load operation.

Air Cooled Condensing Units 65 to 105 TR (R410A)

Models DCH 780,900,1080 & 1200 (65, 75, 90, 105 Nominal Tons)

YORK STELLAR Air cooled condensing units are high efficiency units.780 & 900 have 3 independent refrigerant circuits, 1080 & 1200 have 4 independent refrigerant circuits for efficient part load operation. Although the units are primarily designed for roof top slab mounted at ground level or on steel platform installation above floor or roof. A wide range of factory mounted options and field installed accessories make the STELLAR units suitable for almost every application.
YORK STELLAR units are designed to operate satisfactorily in wide range of ambient temperatures from 131°F (55°C) down to 50°F (10°C) as standard.
YORK STELLAR Condensing units are rated in accordance with ARI 340/360

All Standard Units Include

Powder Paint Finish That Meets ASTM B 117, 750 Hour Salt Spray Standard
Multi-Stage Cooling Provided By Three Or Four Independent Refrigerant Circuits With Expansion Valves, Filter Driers, High And Low Pressure Switches And Freeze-Stats
High Efficient Scroll Compressors
1 Year Limited Warranty On The Complete Unit And Additional 4 Years Warranty On Compressors

Totally Enclosed Air Over (TEAO) IP55 Condenser Fan Motors With Class F Insulation. Microprocessor Based Simplicity TM Control Board
Copper Tubes / Aluminum Fins Condenser Coils. Rigging holes In Base Rails For Overhead Lifting. Single Point Power Connection

Options Available

Heresite Coated Condenser Coils (Factory installed): Coating Is Applied By Spray For Maximum Corrosion Protection
Copper Tube And Copper Fin Evaporator And Condenser Coils (Factory Installed)
Phase Monitors ( factory installed): Design to prevent unit damage, the phase monitor will shut the unit down in an out-of phase condition
Low Ambient Kit (Factory Installed): For Unit To Work Satisfactorily Down To 32°F (0°C)

Main Disconnect Switch (Factory Installed): Suitably Sized In Accordance With The Applicable Electrical Codes
Thermostat (Field Installed): For 3 / 4 Stage Cooling And 2 Stage Heating
BMS Controls: Johnson Controls YORK Stellar series units offer factory mounted BMS controls- Consult your local sales office for details
