Indoor Packaged Series 7.5 - 30 TON

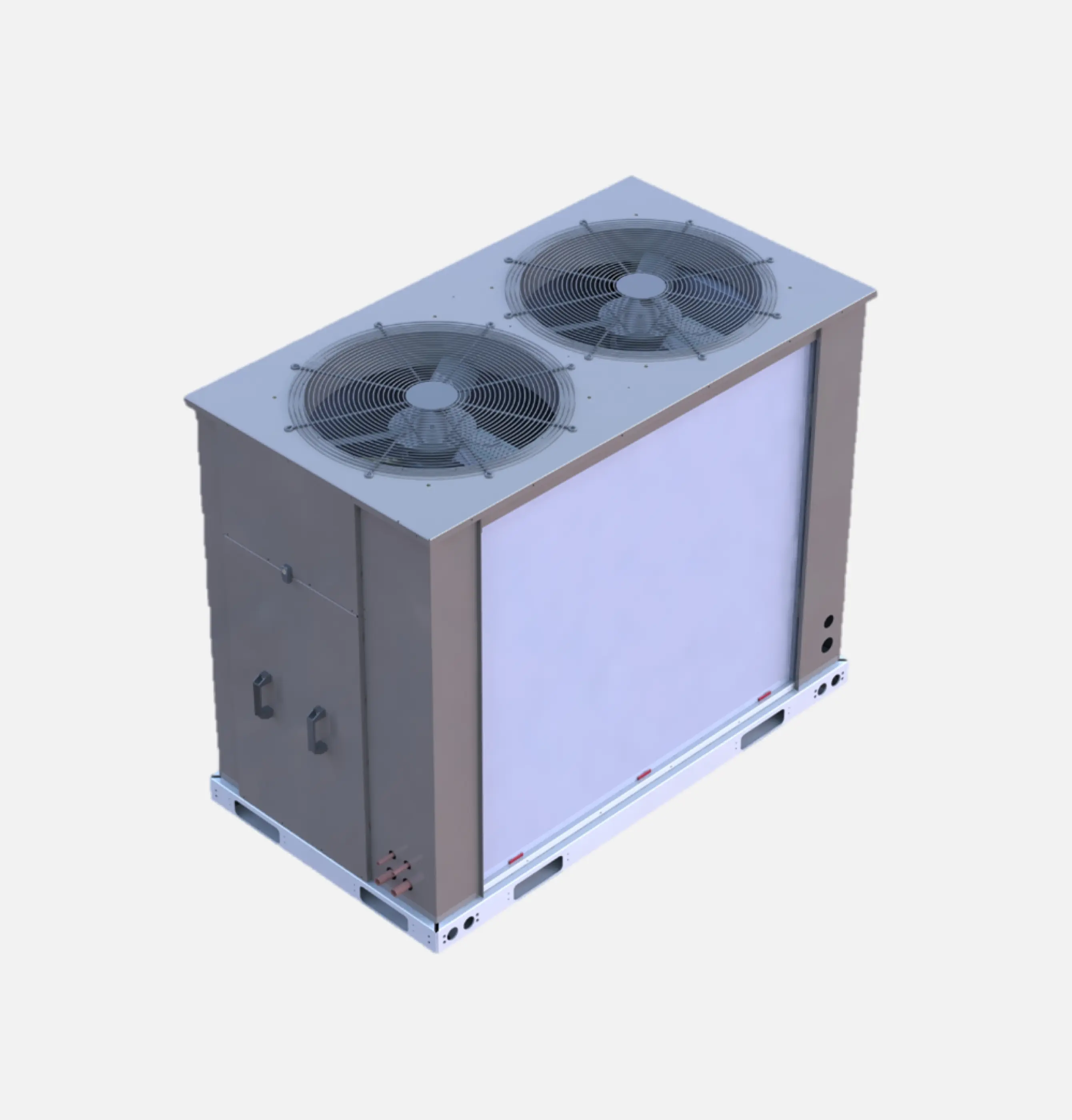

YORK STELLAR 60hz Units are single package energy efficient high ambient rooftops air conditioner.

Models DEH

YORK STELLAR Units are single package energy efficient high ambient rooftops air conditioner. Models DEH090,100 and 120 have independent single refrigerant circuit while models DEH150,190,220,250,300, and 360 have dual refrigerant circuits for efficient part load operation. STELLAR units are designed for roof top slab mounted at ground level or on steel platform installation above floor or roof.

A wide range of factory mounted options and field installed accessories make the STELLAR units suitable for almost every application.

YORK STELLAR units are designed to operate satisfactorily in wide range of ambient temperatures from 131°F (55°C) down to 50°F (10°C) as standard.

All Standard Units Include

Powder Paint Finish That Meets ASTM B 117, 750 Hour Salt Spray Standard
One, Two-Stage Cooling Provided By Single, Dual Independent Refrigeration Circuits With Expansion Valves, Filter Drier, High And Low pressure switches and freeze-stats
High Efficiency Hermetic Scroll Compressors
Belt Drive Blower Motor With Variable Pitch Pulley
Totally Enclosed Fan Cooled (TEFC) IP55 Evaporator And (TEAO) Totally Enclosed Air Over Condenser Fan Motors With Class F Insulation
Microprocessor Based Simplicity TM Control Board
Complete Factory Package-Tested, Charged And Wired

Micro-Channel “All-Aluminum” Condensers To Provide Improved Heat Transfer Capabilities At Reduced Charge Volumes
Copper Tubes / Aluminum Fins Evaporator Coils
2 Inch Aluminum Washable Filter With Easy Access
Bag Filter 85% Efficiency
Moisture Eliminator
Hot Gas Bypass On Lead Compressor
Ambient Temperature Sensor
Rigging Holes In Base Rails For Overhead Lifting
Single Point Power Connection

Options Available

Heresite Coated Evaporator And Condenser Coils (factory installed): Coating Is Applied By Spray For Maximum Corrosion Protection
Copper Tube And Copper Fin Evaporator Coil (Factory Installed)
Bag Filters (Factory Installed): Units Can Be Supplied With Standard Size Bag Filters With Efficiency 65%& 95%
High And Low Speed Drive (Factory Installed) : Includes A Belt And Blower Pulley To Upgrade Or Down-Grade The Blower Performance
Fresh Air Dampers: Manual Or Motorized
Thermostat (Field Installed): For 1/2 Stage Cooling Only And A 1/2 Stage Heating
BMS Controls: York’s Stellar Series Units Offer Factory Mounted BMS Controls-Consult Your Local Sales Office For Details

Electric Heaters: All Electric Heat Models (Heater Factory/Field Installed Only) Are Wired For A Single Power Source And Include A Bank Of Nickel Chromium Elements To Be Mounted At The Discharge Of The Supply Air Blower To Provide A High Velocity And Uniform Distribution Of Air Across The Heating Elements. Every Element Is Fully Protected Against Excessive Current And Temperature By High Temperature Thermal Cut-Out (HTIC)
Phase Monitors (Factory Installed): Design To Prevent Unit Damage, The Phase Monitor Will Shut The Unit Down In An Out Of Phase Condition
Main Disconnect Switch (Factory Installed): Suitably Sized In Accordance With The Applicable Electrical Codes
